Valve Features:
Dimensions:
Flow rates:
Shower Head Features:
Shower Arm Features
Overflow Bath Filler Features:
- Modern 2 outlet concealed design with dual handle control
- Sleek Chrome finish
- Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
- Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
- Ceramic disc technology prevents any unwanted leaks or drips
- Interchangeable backplate design allows portrait or landscape orientation
- Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
- Minimum water pressure required: 0.5 bar
- WRAS approved
- Complies with BSEN 1111
- Covered by a 10 year manufacturer’s guarantee

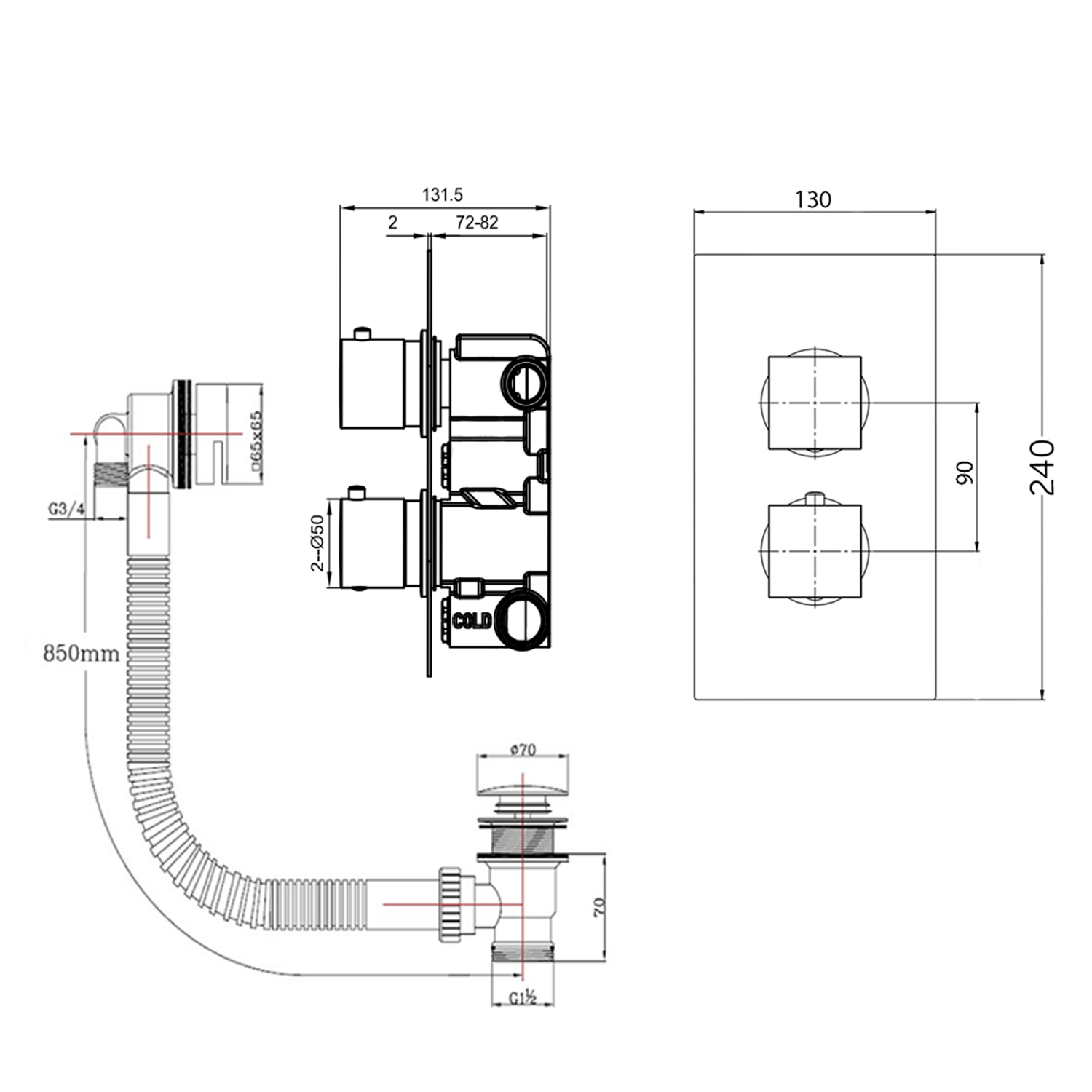

Dimensions:
- Height: 240mm
- Width: 130mm
Flow rates:
- 1.0 bar (l/min): 13.8
- 1.5 bar (l/min): 16.8
- 2.0 bar (l/min): 19.4
- 3.0 bar (l/min): 23.5
- 4.0 bar (l/min): 27.4
- 5.0 bar (l/min): 30.6
Shower Head Features:
- Choose from 200, 300, or 400mm
- Stainless steel shower head in a sleek Chrome finish
- 400mm head features air injection technology - providing softer showering experience & reducing water usage by mixing air with water
- Swivel joint easily adjusts the angle of the head
- Easy-clean rubber nozzles for easy cleaning
- 200 & 300mm heads covered by a lifetime manufacturer’s guarantee
Shower Arm Features
- 2 orientations and 4 sizes to choose from
- 180mm Ceiling Arm: lifetime guarantee
- 360mm Ceiling Arm: 5 year guarantee
- 300mm Wall Arm: 5 year guarantee
- 380mm Wall Arm: 2 year guarantee
Overflow Bath Filler Features:
- Chrome-plated overflow bath filler
- Clicker waste included
- Minimum water pressure required: 1 bar
| Product Code | dr-jake-con-bath-shower-kit |
|---|
| Type | Concealed Valve Shower & Bath Sets |
|---|---|
| Brand | Drench |
| Brand Range | Drench Jake |
| Flow Rate at 1 Bar (l/min) | 13.8 |
| Flow Rate at 1.5 Bar (l/min) | 16.8 |
| Finish | Chrome |
| Flow Rate at 2 Bar (l/min) | 19.4 |
| Shape | Square |
| Flow Rate at 3 Bar (l/min) | 23.5 |
| Handle Type | Dual Control, Square |
| Flow Rate at 4 Bar (l/min) | 27.4 |
| Spout Type | Overflow Spout |
| Flow Rate at 5 Bar (l/min) | 30.6 |
| Finish Texture | Polished |
| Style | Modern |
| Material | Brass, Stainless Steel |
| Orientation | Landscape, Portrait |
| Guarantee |
Various |
| Number of Outlets | 2 Outlets |
| Temperature Control | Thermostatic |
| Cartridge Type |
Ceramic Disc |
| Popular Features | Easy Clean Nozzles |
| Global Trade Item Number | Select an option first |
| Mounting Type | Select an option first |
| Minimum Water Pressure | Select an option first |
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
