Features:
Dimensions:
- WRAS Approved
- 1 outlet shower valve
- Chrome finish
- Full thermostatic protection, prevents scalding water in the event of hot or cold water being shut off
- Strong flow rates, please see specification
- Ceramic disc (1/4 turn), highly resistant to calcium build up
- Wheel control
- Brass trim
- Portrait mounted
- Minimum water pressure of 0.1 bar
- Made in the UK
- 20 year manufacturer's guarantee

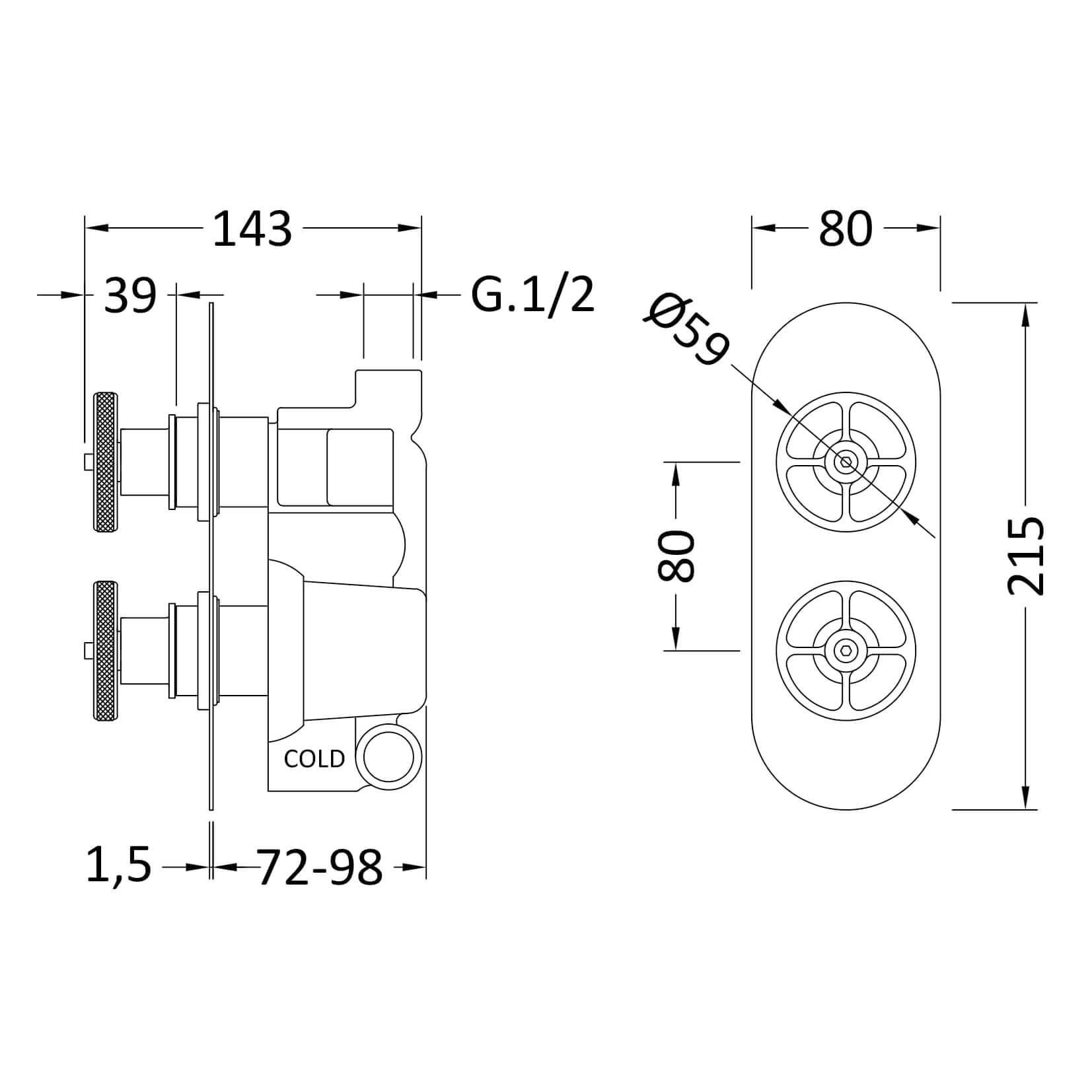

Dimensions:
- Height: 215mm
- Width: 80mm
- Depth: 143mm
| Product Code | SIWTW01 |
|---|
| Global Trade Item Number | 5056211855132 |
|---|---|
| Type | Concealed Shower Valves |
| Width (mm) | 80 |
| Height (mm) | 215 |
| Depth (mm) | 143 |
| Brand | Hudson Reed |
| Brand Range | Hudson Reed Revolution |
| Flow Rate at 0.1 Bar (l/min) | 5.5 |
| Flow Rate at 0.2 Bar (l/min) | 14 |
| Flow Rate at 0.5 Bar (l/min) | 14 |
| Flow Rate at 1 Bar (l/min) | 20 |
| Mounting Type | Wall Mounted |
| Finish | Chrome |
| Flow Rate at 2 Bar (l/min) | 29 |
| Shape | Curved |
| Flow Rate at 3 Bar (l/min) | 44 |
| Handle Type | Round |
| Finish Texture | Polished |
| Minimum Water PressureMore information | 0.1 |
| Style | Modern |
| Material | Brass |
| Orientation | Portrait |
| GuaranteeMore information | 20 Years |
| Number of Outlets | 1 Outlet |
| Temperature Control | Thermostatic |
| Cartridge TypeMore information | Ceramic Disc |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
