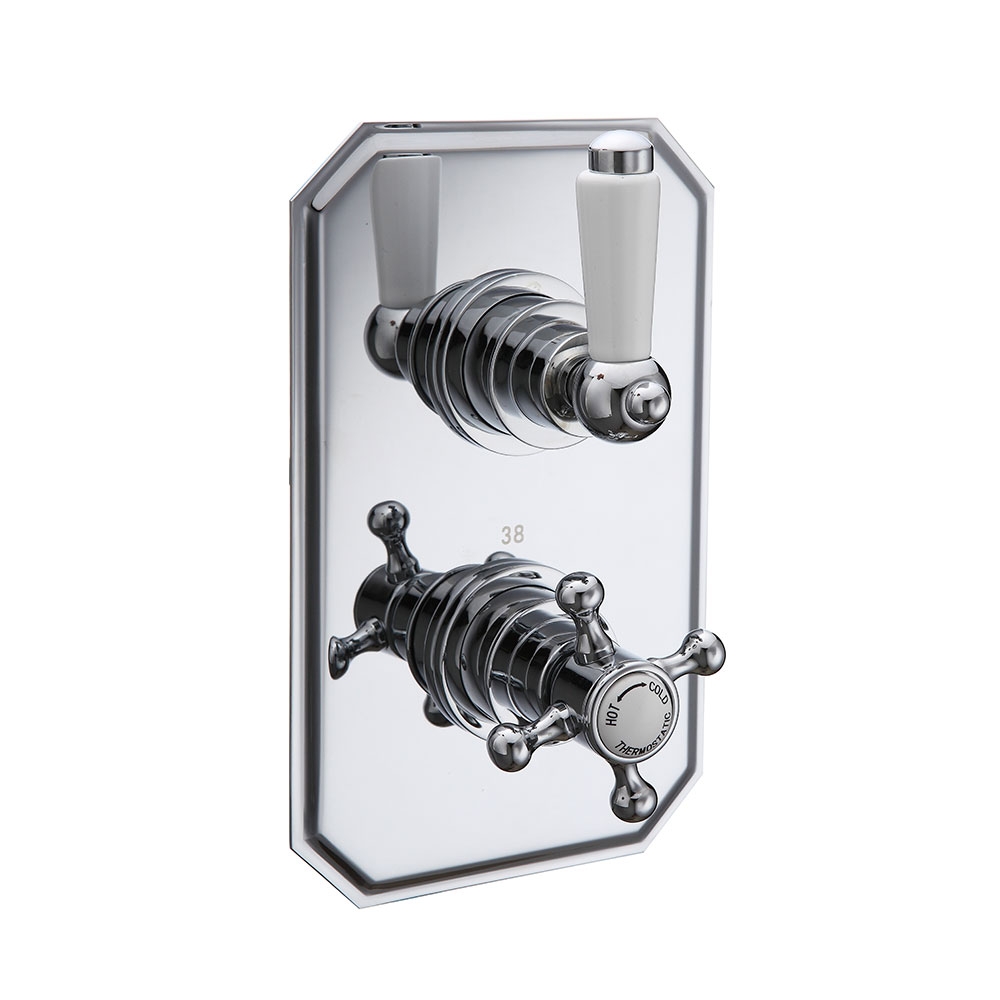

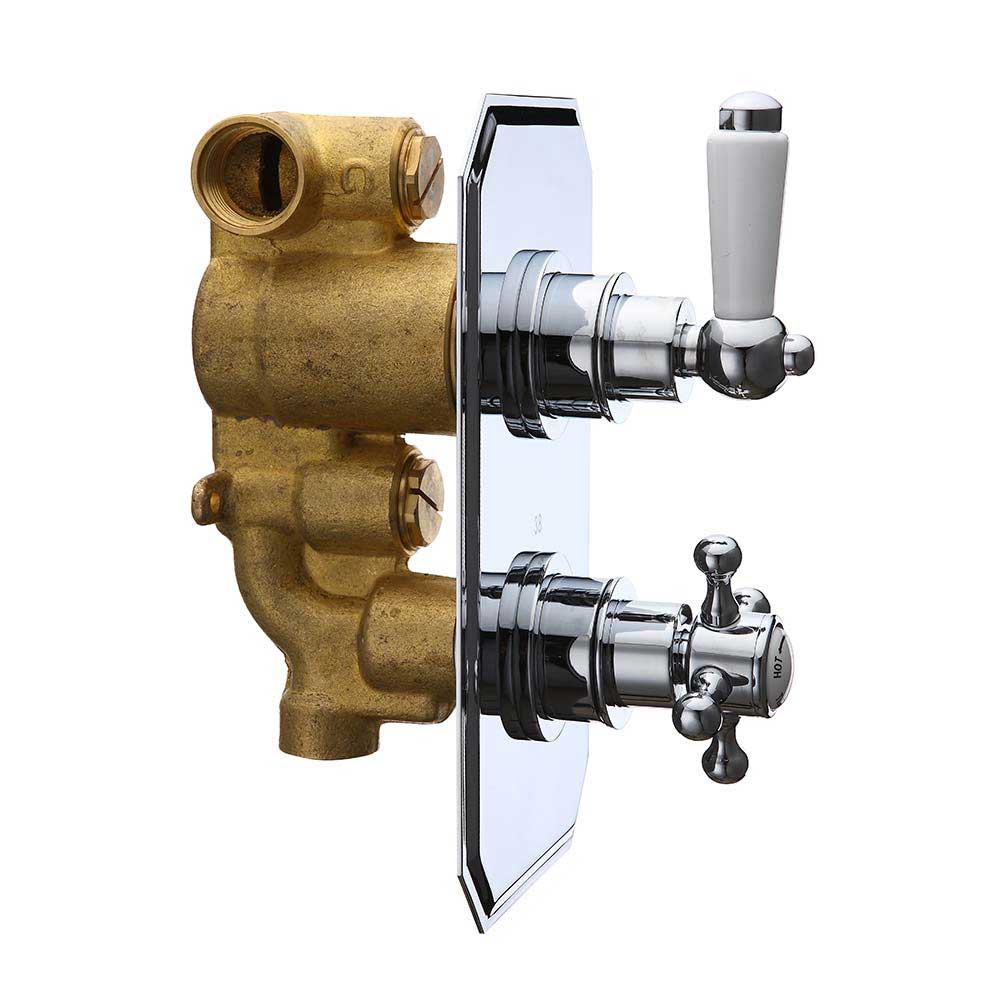

Give your bathroom style a traditional twist with this stylish and elegant single outlet thermostatic shower valve. Backed by a 10 year manufacturer's guarantee.
Features:
Dimensions:
Features:
- Accurate flow control
- Thermostatically controlled
- Manufactured from high quality Brass, Ceramic & Zinc Alloy
- Complete thermal protection shut-off to prevent scalding if hot or cold water should fail
- TMV2 approved
- 10 year guarantee

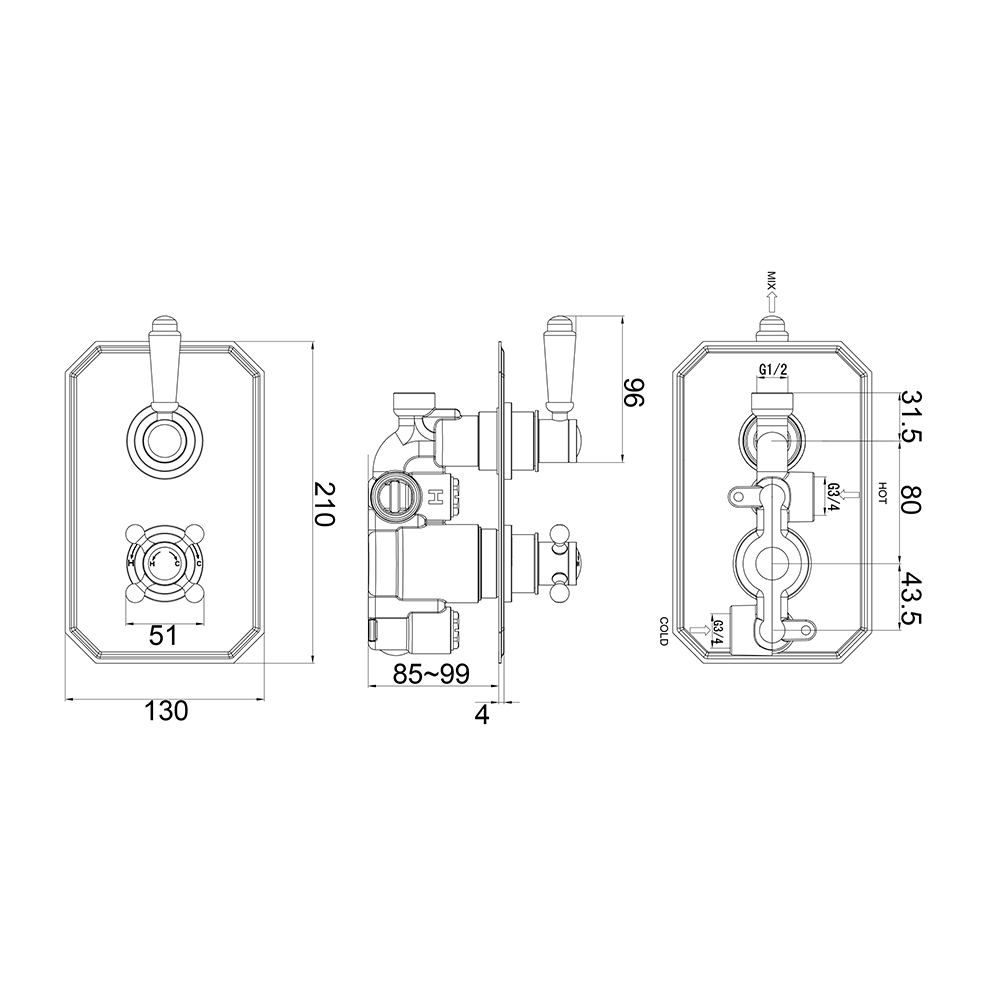

Dimensions:
- Height: 210mm
- Width: 130mm
| Product Code | BRVICSH12 |
|---|
| Global Trade Item Number | 5056585238715 |
|---|---|
| Type | Concealed Shower Valves |
| Width (mm) | 130 |
| Height (mm) | 210 |
| Brand | Butler & Rose |
| Brand Range | Butler & Rose Victoria |
| Flow Rate at 0.5 Bar (l/min) | 12.4 |
| Flow Rate at 1 Bar (l/min) | 18.4 |
| Mounting Type | Wall Mounted |
| Flow Rate at 1.5 Bar (l/min) | 22.1 |
| Finish | Chrome, White |
| Flow Rate at 2 Bar (l/min) | 26.7 |
| Shape | Square |
| Flow Rate at 3 Bar (l/min) | 32.1 |
| Handle Type | Crosshead, Dual Control, Lever |
| Flow Rate at 4 Bar (l/min) | 37.4 |
| Flow Rate at 5 Bar (l/min) | 42.2 |
| Finish Texture | Polished |
| Minimum Water Pressure |
0.5 |
| Style | Traditional |
| Material | Brass, Ceramic, Zinc Alloy |
| Orientation | Portrait |
| Guarantee |
10 Years |
| Number of Outlets | 1 Outlet |
| Temperature Control | Thermostatic |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
