Features:
Dimensions:
Valve
Shower Arm
Shower Head
Shower Hose & Handset
- Includes shower valve, shower hose and handset and fixed overhead shower
- WRAS and TMV2 approved
- Thermostatic control keeps the temperature where you set it, even if the pressure fluctuates
- Minimum 0.2 bar water pressure required
- Suitable for all water systems including low pressure gravity-fed
- One handle switches between outlets, the other controls the temperature
- Matching basin tap available

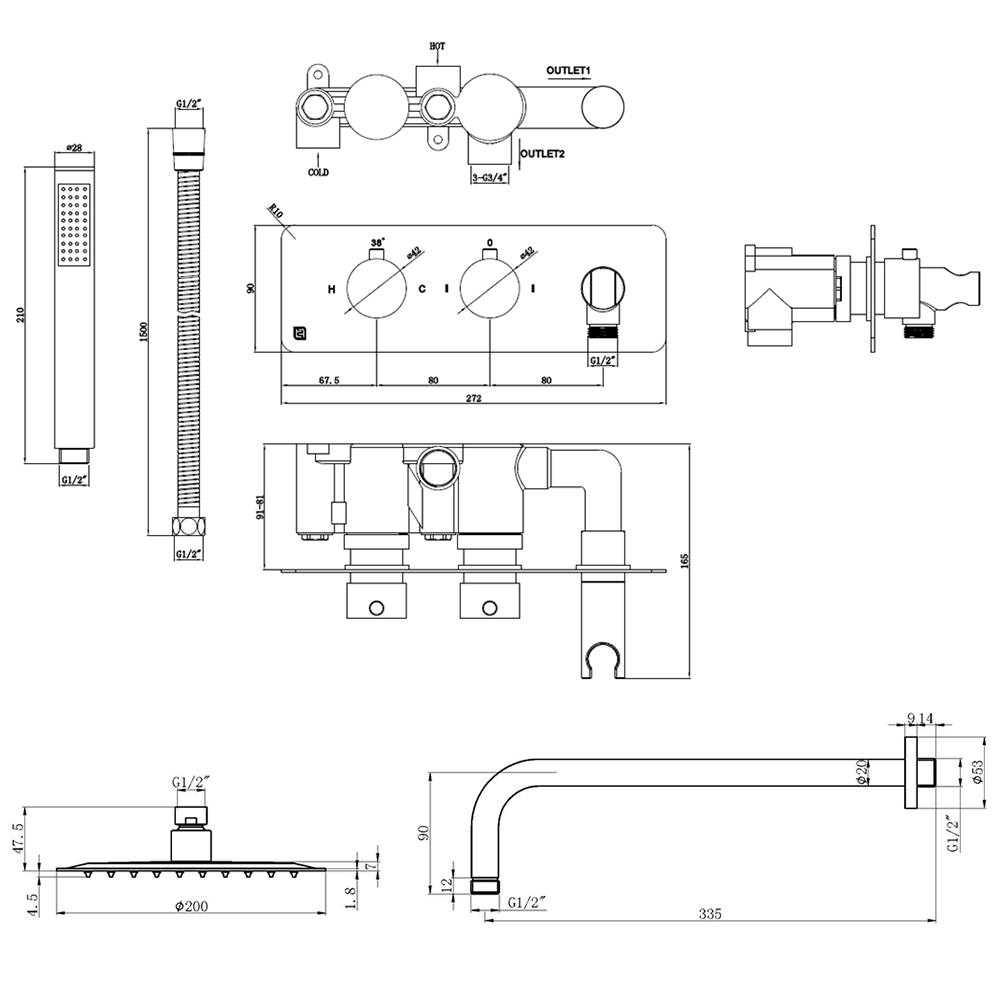

Dimensions:
Valve
- Height: 90mm
- Width: 272mm
- Depth: 165mm
Shower Arm
- Height: 90mm
- Width: 53mm
- Depth: 335mm
Shower Head
- Height: 47.5mm
- Width: 200mm
Shower Hose & Handset
- Hose Length: 1500mm
- Handset Height: 210mm
- Handset Width: 28mm
| Product Code | TFVIBVALVESET-NK |
|---|
| Type | Concealed Shower Sets |
|---|---|
| Brand | The Tap Factory |
| Brand Range | The Tap Factory Vibrance |
| Flow Rate at 0.5 Bar (l/min) | 10.5 |
| Mounting Type | Deck Mounted |
| Finish | Brushed Nickel |
| Shape | Round |
| Finish Texture | Brushed |
| Minimum Water PressureMore information | 0.2 |
| Tap Holes | Mono |
| Style | Modern |
| Number of Outlets | 2 Outlets |
| Cartridge TypeMore information | Ceramic Disc |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.
Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
