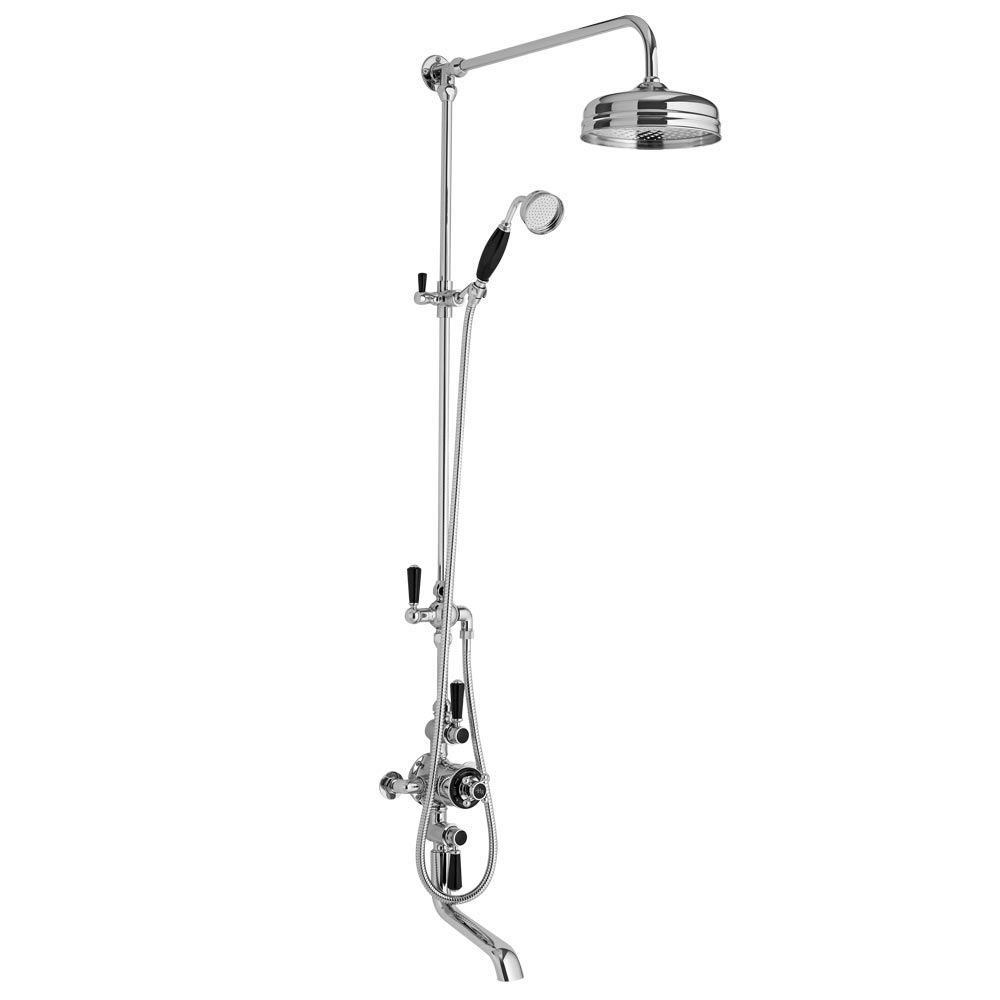

Think elegance and clarity combined with a strong classical style and remarkable good looks. The Hudson Reed Black Topaz Shower Valve with Rigid Riser Kit & Spout is the perfect compliment to your Victorian bathroom and looks absolutely stunning set over a roll-top or free standing bath.
Features:

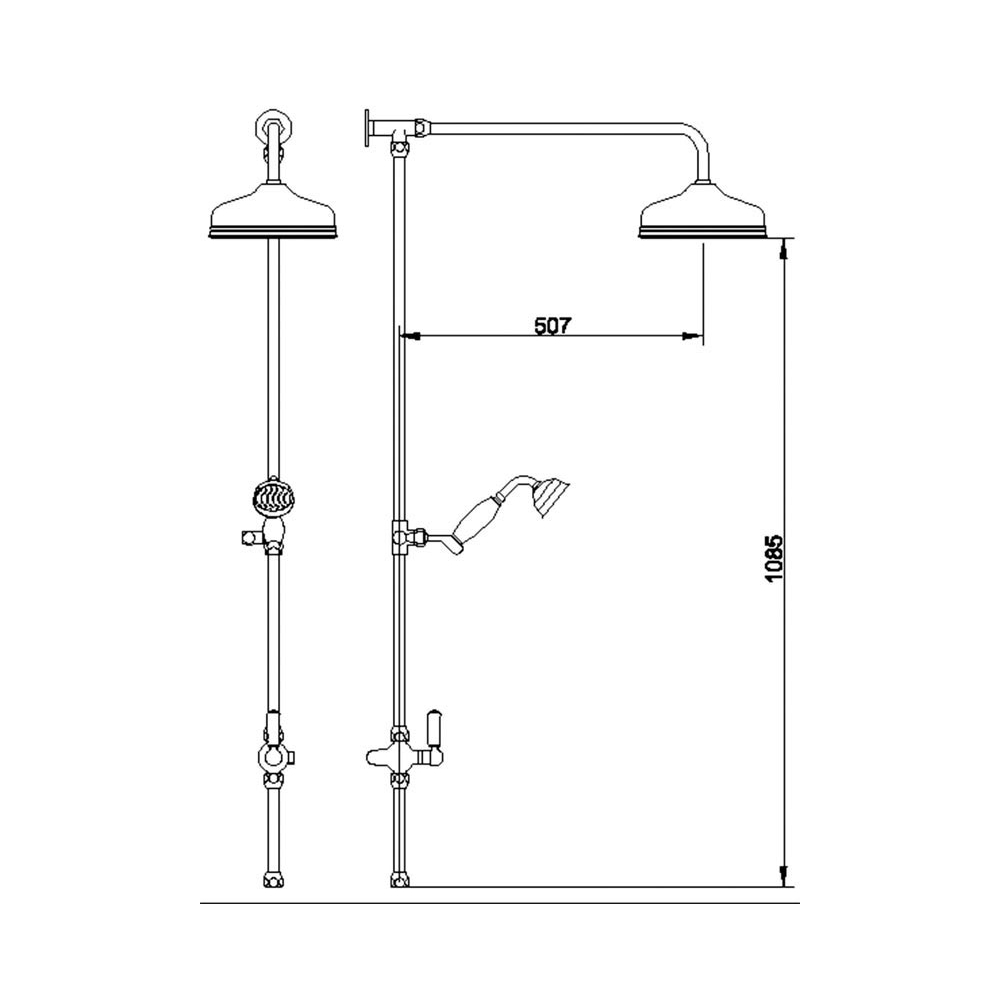

Dimensions:
Height - 1440mm
Width - 195mm
Depth - 667mm
Features:
- Thermostatic control to +/- 1 degree
- Constructed from solid brass
- Rigid riser kit and bath spout included
- Full thermal protection in the event of hot or cold water shut-off
- Patented cartridge protects against calcium build-up
- Suitable minimum 0.5 bar pressure
- Fully reversible cartridge
- 20 year guarantee
Dimensions:
Height - 1440mm
Width - 195mm
Depth - 667mm
| Product Code | BTSVT103 |
|---|
| Global Trade Item Number | 5055275867938 |
|---|---|
| Type | Bath & Shower Mixer Sets, Exposed Shower Sets |
| Width (mm) | 195 |
| Height (mm) | 1440 |
| Depth (mm) | 195 |
| Brand | Hudson Reed |
| Brand Range | Hudson Reed Black Topaz |
| Flow Rate at 0.1 Bar (l/min) | 4.5 |
| Flow Rate at 0.5 Bar (l/min) | 13 |
| Flow Rate at 1 Bar (l/min) | 18.5 |
| Mounting Type | Wall Mounted |
| Finish | Black, Polished Chrome |
| Flow Rate at 2 Bar (l/min) | 26 |
| Shape | Round |
| Flow Rate at 3 Bar (l/min) | 33 |
| Handle Type | Crosshead, Lever, Triple Control |
| Spout Type | Curved Spout |
| Finish Texture | Polished |
| Minimum Water Pressure |
0.5 |
| Tap Holes | 2 Holes |
| Style | Traditional |
| Guarantee |
20 Years |
| Projection (mm) | 667 |
| Number of Outlets | 3 Outlets |
| Temperature Control | Thermostatic |
Minimum Water Pressure
Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.
- With a combi boiler you can usually expect between 1 and 2 bar
- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs
- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar
You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
Guarantee
All of our brand partners and manufacturers offer a warranty as standard. Please note that these guarantees are provided by the manufacturer, and will be subject to individual terms and conditions, for example avoiding abrasive bleach-based cleaning products.
If you need further info about a specific manufacturer's guarantee, please contact our team.
